Wago 221 clutch clamp
Couldn't load pickup availability
WAGO 221 - The terminal block for Smart Installations
With the WAGO 221 series, installation is simple and smooth. Use the proven CAGE CLAMP® technology for tool-free and secure connection. You can open and close the clamp with minimal effort, and it withstands high temperatures up to 85°C, making it ideal for connections in downlights and similar applications.
In real estate installations, space is often in short supply, and every millimeter counts. With the Wago 221 series, you can quickly and easily connect different conductor types in the junction box. It allows you to integrate a variety of functions, such as electrically controlled sun shades, doors, gates and lighting systems.

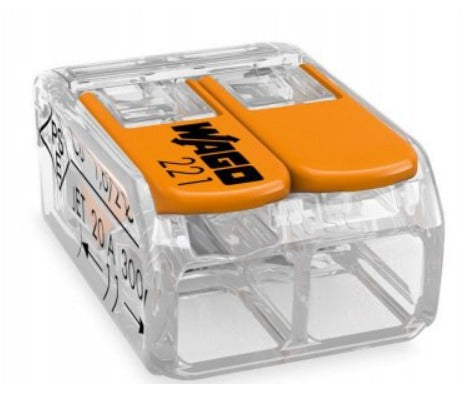

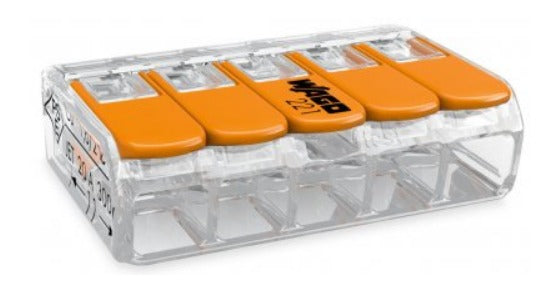

This terminal is perfect for RK.FK, FQ, RKUB single conductor or a combination of these. It can handle cables up to 4 mm² (there is also a variant for 6 mm²). You can buy them individually or in practical packs. Choose between 2-pole, 3-pole and 5-pole versions depending on your needs. Make your installations smarter and simpler with the WAGO 221.
*Technical data
Other package sizes: 50 ST/500 ST/88000 ST

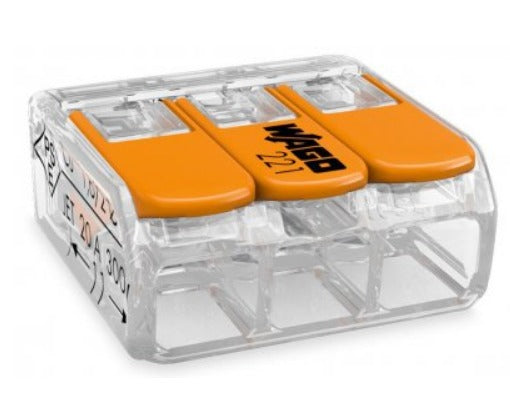

Type: 221-413
Number of clamping positions: 3
Nominal conductor area: 0.2-4 mm²
Conductor area rigid (solid, stranded): 0.2-4 mm²
Conductor area flexible (multi-wire) with end sleeve: 0.14-4 mm²
AWG range: 12-24
With locking lever: Yes
Color: Colorless
Rated voltage: 450 V
Rated current: 32 A
Width: 18.7 mm
Depth: 18.6 mm
Height: 8.3 mm
Suitable for flexible conductor: Yes
Suitable for multi-strand conductors: Yes
Suitable for single conductor: Yes
REACH Date: 2023-02-10
REACH Information obligation: No
