Wago 221-2411 Joint clamp openable 2x4mm²

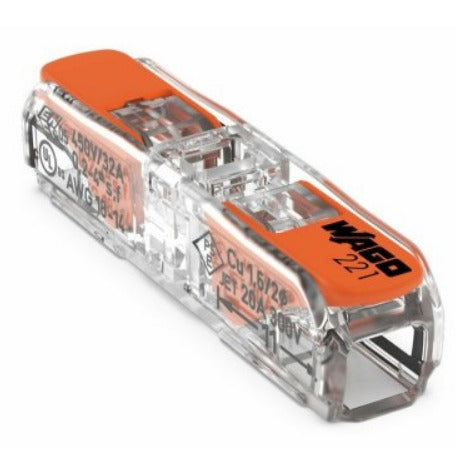

Wago 221-2411 Joint clamp openable.

Splicing clamp for all types of CU conductors. The conductor is connected by raising the orange arm, inserting the stripped conductor and returning the arm. Equipped with test hole.

• Brand: Wago
• Package sizes: 60/105600
• Number of clamping positions: 2
• Nominal conductor area: 0.2-4 mm²
• Conductor area flexible (multi-wire) with end sleeve: 0.2-2.5 mm²
• Conductor area rigid (solid, stranded): 0.2-4 mm²
• With locking lever: Yes
• Color: Orange
• Rated voltage: 450 V
• Rated current: 32 A

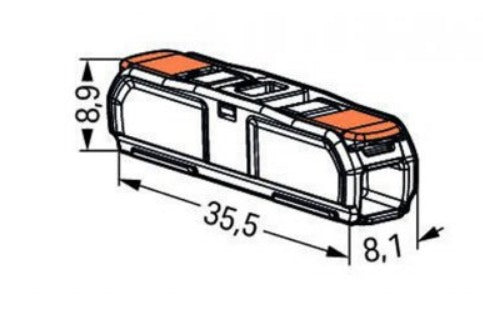

• Width: 8.1 mm
• Depth: 35.5 mm
• Height: 8.9 mm
• Suitable for flexible conductor: Yes
• Suitable for stranded conductor: Yes
• Suitable for single conductor: Yes
• AWG range: 20-14

*Technical data
