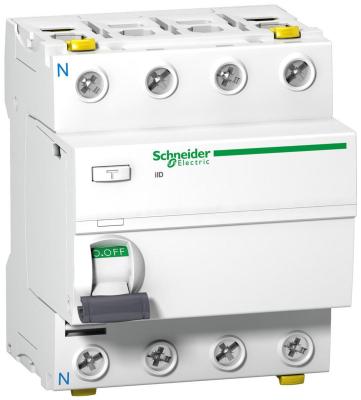

Schneider RCD Acti9 4-pole 25A 30MA

Out of stock
(0)
814 kr Moms ingår
-60% 2 035 kr 814 kr Moms ingår
Fri frakt över 599kr
365 dagar Öppetköp

The earth fault circuit breakers are of the electromechanical type and work without external voltage sources. They are available in 2P and 4P design class A, with rated fault current 30mA and 300mA in:
- Standard execution
- Asi which is short-time delayed 10mS and has increased surge current resistance 3kA. They are also equipped with an internal protection that makes them suitable for humid and aggressive environments. All can be fitted with an auxiliary contact to indicate that the RCD has tripped.

    *Technical data
    Brand: Schneider Electric
    Article number: 2164952003
    Live. article number: A9Z21425
    Ean article number: 3606480443176
    Type: A9Z21425
    Leakage current type: A
    Number of poles: 4
    Rated voltage: 400 V
    Rated current: 25 A
    Nominal fault current: 30 mA
    Installation depth: 73 mm
    Width in number of module spaces: 4
    Impulse current strength: 0.25 kA
    Selective protection: No
    Short circuit withstand (lcw): 1.5 kA
    Frequency: 50/60 Hz
    Short-term delayed ejaculation: No
    Protection class (IP): IP20
    Additional devices possible: Yes
    Connectable conductor area single-wire: 1-35 mm²
    Connectable conductor area stranded: 1-25 mm²
    Mounting method: DIN rail
    Pollution degree: 3
    Impulse protection rated voltage Uimp: 6 kV
    Nominal insulation voltage: 500 V
    Ambient temperature during operation: 25-60 °C
    With interlock function: Yes
    Series: Acti 9
    REACH - Contains candidate substances: Lead | 1,2-dimethoxyethane, Dimethyl Glycol, 1,2-dimethoxyethane
    REACH Date: 2022-07-20
    REACH Information obligation: Yes
