Home » Schneider Dwarf circuit breaker iC60H 3-pole 10kA C

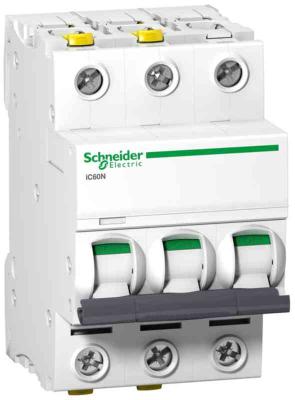

Schneider Dwarf circuit breaker iC60H 3-pole 10kA C

Out of stock
(0)
479 kr Moms ingår
Nominell märkström
Fri frakt över 599kr
365 dagar Öppetköp

Areas of use: for offices, schools, commercial and industrial installations. C-curve: for the protection of lighting and heating circuits, as well as motors and larger groups of light bulbs or fluorescent tubes. Rated voltage: 230/400 V AC Breaking capacity: according to EN 60898: 10 kA

    *Technical data
    Brand: Schneider Electric
    Article number: 2112254890
    Live. article number: A9F07316
    Ean article number: 3606480438653
    Type: A9F07316
    Series: Acti 9
    Rated current: 16 A
    Number of poles (total): 3
    Width in number of module spaces: 3
    Trigger characteristic: C
    Short-circuit breaking capacity Icn EN 60898 at 400 V: 10 kA
    Short-circuit breaking capacity Icu IEC 60947-2 at 400 V: 15 kA
    Rated voltage: 400 V
    Voltage type: AC/DC
    Number of protected poles: 3
    Protection class (IP): IP20
    Frequency range: 50-60 Hz
    Parallel switching neutral conductor: No
    Current limitation class: 3
    Additional devices possible: Yes
    Overvoltage category: 4
    Pollution degree: 3
    Recessed mounting: No
    Installation depth: 78.5 mm
    REACH - Contains candidate substances: Lead
    REACH Date: 2022-07-20
    REACH Information obligation: Yes
