HAGER Ground terminal block with screwless connections KN

Out of stock
(0)
62 kr Moms ingår
-97% 2 100 kr 62 kr Moms ingår
Utförande
Fri frakt över 599kr
365 dagar Öppetköp

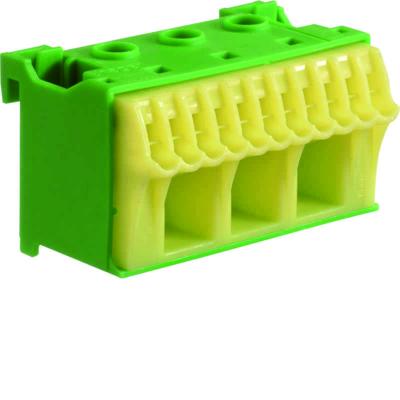

Hager standard enclosures have neutral / earth terminals for screwless connections. They can also be supplied in blocks of different sizes for neutral or earth wires. You can now combine your neutral and ground equipment exactly as you wish. The terminals have quick connection 1.5 mm² to 4 mm² and screw connection takes 1.5 mm² to 16 mm². The system also includes separate holders for each enclosure type and a version for DIN rail. The terminals are touch protected. Connecting plate for connection between the terminal blocks.

    *Technical data
    Brand: Hager
    Article number: 2281477
    Live. article number: KN14E
    Ean article number: 3250613849030
    Type of electrical connection 1: Spring clamp connection
    Type of electrical connection 2: Spring clamp connection
    Connectable conductor area stranded: 1.5-25 mm²
    Connectable conductor area single-wire: 1.5-25 mm²
    Rated voltage: 230 V
    Color: Green
    Rated current In: 63 A
    Length: 60 mm
    End plate required: No
    Operating temperature: -5-40 °C
    Explosion-tested version Ex-e: No
    Flame resistance installation material class (UL94): V0
    Material insulation body: Other
    Mounting method: Other
    Transparent: No
    Rated current: 63 A
    REACH Date: 2021-06-16
    REACH Information obligation: No
