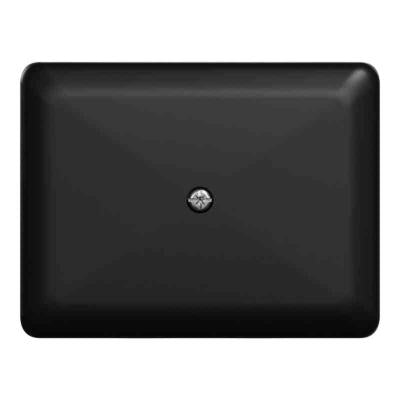

ELKO BULLET BOX WITH TERMINAL RS SV EKO40027 BLACK
Regular price
55 kr
Moms ingår
Regular price
-70%
184 kr
Sale price
55 kr
Moms ingår
Couldn't load pickup availability
Fri frakt över 599kr
365 dagar Öppetköp

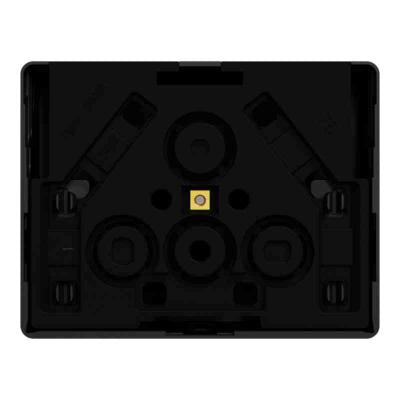

Made of thermoplastic with space for three terminal blocks 4x2.5mm² and strain relief. Approved by SEMKO for 440 V.
*Technical data:
Brand: Elko
Article number: 1438390
Article number: 1438390
Live. article number: EKO07464
Ean article number: 7020160746405
Width : 64 mm
Length: 83 mm
Depth: 28 mm
Series: RS
Max. conductor area: 2.5 mm²
Equipped with: Clamp
Colour: Black
RAL number: 9003
Castable: No
Material: Plastic
Installation under water: No
Installation in soil/ground: No
For pipe diameter: Other
With shielding: No
Shape: Rectangular
Rear entry: Yes
Type of enclosure feedthrough: None
Mounting method: Wall/Ceiling mounting
Protection class (IP): IP20
Halogen-free: Yes
Linkable: No
Operating temperature range: -25-60 °C
Sealable: No
Surface protection: Untreated
Lid/cover attachment: Screwed
Explosion-tested design: No
REACH Date: 2022-08-09
REACH Information obligation: No
Length: 83 mm
Depth: 28 mm
Series: RS
Max. conductor area: 2.5 mm²
Equipped with: Clamp
Colour: Black
RAL number: 9003
Castable: No
Material: Plastic
Installation under water: No
Installation in soil/ground: No
For pipe diameter: Other
With shielding: No
Shape: Rectangular
Rear entry: Yes
Type of enclosure feedthrough: None
Mounting method: Wall/Ceiling mounting
Protection class (IP): IP20
Halogen-free: Yes
Linkable: No
Operating temperature range: -25-60 °C
Sealable: No
Surface protection: Untreated
Lid/cover attachment: Screwed
Explosion-tested design: No
REACH Date: 2022-08-09
REACH Information obligation: No
