Elko Door opening button, surface-mounted 16A 250V IP21

Out of stock
(0)
215 kr Moms ingår
-59% 527 kr 215 kr Moms ingår
Fri frakt över 599kr
365 dagar Öppetköp

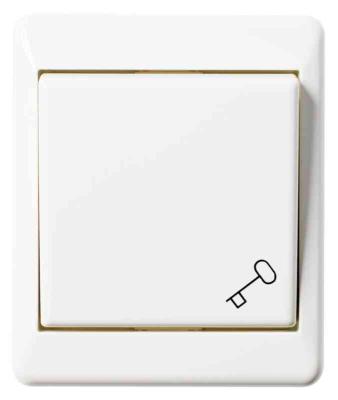

Push rocker switch for door opening is provided with spring-loaded rocker with engraved key symbol. Both closing and breaking function as well as the possibility of switching to additional switches. The switch is equipped with a full base plate and has several alternative mounting holes for attachment. Screw connection of the conductors with elevator clamps.

    *Technical data:

    Brand : Elko
    Article number: 1840944
    Live. article number: EKO03692
    Ean article number: 7020160369208
    Series: RS
    Connection type: Other
    Operation method: Rocker/button
    Number of flippers: 1
    Lighting: No
    Push Button Switch: Yes
    Color: White
    Type of connection: Screw terminal
    Label space/information area: No
    Rated current: 16 A
    Switching current for fluorescent tubes: 10 AX
    RAL number (similar): 9010
    Suitable for protection class (IP): IP21
    Material: Plastic
    Material quality: Thermoplastic
    Halogen-free: Yes
    Mounting method: Surface mounting
    Device width: 71 mm
    Device height: 84 mm
    Device depth: 28mm
    Composition: Base element with complete housing
    Rated voltage: 250 V
    Washing machine switch: No
    Type of attachment: Screw mounting
    Type of surface: Glossy
    Surface protection: Untreated
    Feedback signal connector: No
    With mounting plate: Yes
    REACH Date: 2022-08-09
    REACH Information obligation: No
